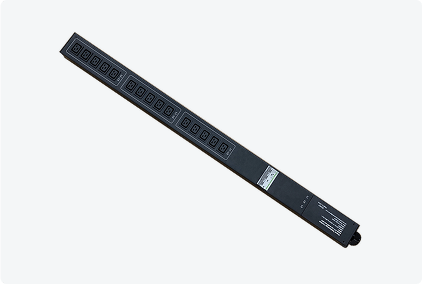

Power Distribution Units (PDUs)

CMGS-12P34-3PCB-100A

Total Output Power 72KW MAX

Total Current 100A MAX

Socket Standard P34 (12pcs)

Product details

Voltage

Input: 380~415V/Three phase(LLLNG)
Output: 380V-480V/Single phase

Input Characteristics

Input Connector: 100Ax5wires (or junction box, input breaker optional, price difference)
Frequency: 50/60Hz

Output Characteristics

Total Current MAX: 350A
Total Output Power MAX: 72KW

Protection

Protection Function: 3P 125A Breaker
Dimension: L*W*H = 1780*64*100mm
Wire Specification: CE or UL certification, with flame retardant function
Net Weight: 15.5Kg

CMGS-RPDU-SA2-30-200A

Total Output Power 144KW MAX

Total Current 200A MAX

Socket Standard SA2-30 (10pcs)

Product details

Voltage

Input: 380~415V/Three phase(LLLNG)
Output: 380V-480V/Single phase

Input Characteristics

Input Connector: 250Ax5wires(or junction box, input breaker optional, price difference)
Frequency: 50/60Hz

Output Characteristics

Total Current MAX: 200A
Total Output Power MAX: 144KW

Protection

Protection Function: 5pcs / 3P 40A Breaker
Dimension: L*W*H = 1780*64*100mm
Wire Specification: CE or UL certification, with flame retardant function
Net Weight: 25.5Kg

CMGS-15C19-MCB-3P-80A

Total Output Power 28KW MAX

Total Current 80A MAX

Socket Standard C19 (15pcs)

Product details

Voltage

Input: 380~415V/Three phase(LLLNG)
Output: 208VAC/Single phase

Input Characteristics

Input Connector:80Ax4wires (or junction box, input breaker optional, price difference)
Frequency: 50/60Hz

Output Characteristics

Total Current MAX: 80A
Total Output Power MAX: 28KW

Protection

Protection Function: 3pcs 80A Breaker
Dimension: L*W*H = 1448*113*80mm
Wire Specification: VDE or UL certification, with flame retardant function
Net Weight: 11.5Kg

CMGS-IEC6-MCB-30A

Total Output Power 7.2KW MAX

Total Current 30A MAX

Socket Standard C19 (2pcs), C13 (4pcs)

Product details

Voltage

Input: 380~415V/Three phase(LLLNG)
Output: 220V-240V AC/Single phase

Input Characteristics

Input Connector: 30Ax3wires(or junction box, input breaker optional, price difference)
Frequency: 50/60Hz

Output Characteristics

Total Current MAX: 30A
Total Output Power MAX: 7.2KW

Protection

Protection Function: 1pcs / 1P 32A Breaker
Dimension: L*W*H = 483*44.5*44.5mm
Wire Specification: VDE or UL certification, with flame retardant function
Net Weight: 2.5Kg

CMGS-24C19-MCB-3P-125A

Total Output Power 89KW MAX

Total Current 125A/150A MAX

Socket Standard C19 (24pcs)

Product details

Voltage

Input: 380~415V/Three phase(LLLNG)
Output: 220V-240VAC/Single phase

Input Characteristics

Input Connector: 125Ax5wires(or junction box, input breaker optional, price difference)
Frequency: 50/60Hz

Output Characteristics

Total Curent MAX: 150A
Total Output Power MAX: 89KW

Protection

Protection Function: 24pcs / 1P 20A Breaker
Dimension L*W*H = 1698*120*80mm
Wire Specification: VDE or UL certification, with flame retardant function
Net Weight: 11.5Kg

CMGS-12P34-3PCB-100A

Total Output Power 57KW MAX

Total Current 80A MAX

Socket Standard C19 (12pcs)

Product details

Voltage

Input: 380~415V/Three phase(LLLNG)
Output: 220V-250V/Single phase

Input Characteristics

Input Connector: 100Ax5wires (or junction box, input breaker optional, price difference)
Frequency: 50/60Hz

Output Characteristics

Total Current MAX: 80A
Total Output Power MAX: 57KW

Protection

Protection Function: 3pcs / 1P 100A Breaker
Dimension: L*W*H = 1680*64*100mm
Wire Specification: CE or UL certification, with flame retardant function
Net Weight: 15.5Kg

Power Panel(OEM)

Our high-precision measurement solutions deliver comprehensive data for terminal energy monitoring systems, showcasing real-time power quality metrics through a dedicated display unit.

This data is transmitted to a central environmental control system via digital communication, enabling continuous monitoring and effective management of power distribution performance.

These solutions empower users to optimize data center operations, enhance energy management practices, and improve the operational efficiency of server racks, fostering sustainable and reliable green IDC operations.

Primarily designed for data centers in sectors such as telecommunications, finance, government, IT, as well as largescale mining and industrial enterprises, this system provides critical services, including power distribution, protection, measurement, and power management for key equipment like network servers.
